VMD SERIES
Vibration Motors for the Milling Industry
The milling industry plays a critical role, especially in food processing, feed production, flour, cement, and mining industries. In these sectors, material grinding, transportation, and separation processes must be carried out with high efficiency and safety standards. Vibramod Vibration Motors, enable these processes to be performed more efficiently, quickly, and precisely. Vibration motors used in mills play a crucial role in material handling, separation, compaction, and grinding processes.
| Teknik Veri Data Sheet | MODEL | SICAKLIK SINIFI (Celcius) | ÇALIŞMA MONTAJI WORKING MOMENT | STATİK MOMENT STATICAL MOMENT (Kgmm) | SANTRİFUJ KUVVET CENTRIFUGAL FORCE (KgF) 50Hz | SANTRİFUJ KUVVET CENTRIFUGAL FORCE KN (50Hz) | AĞIRLIK WEIGHT (Kg) | Max. Giriş Gücü (Kw) Max. INPUT POWER (Kw) 400V - 50Hz | Max. Giriş Gücü (Kw) Max. INPUT POWER (Kw) 400V - 60Hz | Max. AKIM (A)Max. CURRENT (A) 400V 50Hz | Max. AKIM (A) Max. CURRENT (A) 400V 50Hz / 60Hz | 3D Data |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | VMD 550 | 120 | 270,30 | 1351,50 | 544,00 | 13,26 | 32,00 | 0,30 | 33,60 | 1,30 | 1,37 | |
| VMD 650 | 120 | 324,36 | 1621,80 | 653,00 | 15,91 | 35,00 | 0,30 | 36,75 | 1,50 | 1,58 | |
| VMD 800 | 120 | 405,26 | 2026,30 | 816,00 | 19,88 | 47,00 | 0,55 | 49,35 | 1,70 | 1,79 | |
| VMD 1000 | 120 | 506,80 | 2534,00 | 1020,00 | 24,86 | 52,00 | 0,55 | 54,60 | 2,00 | 2,10 |

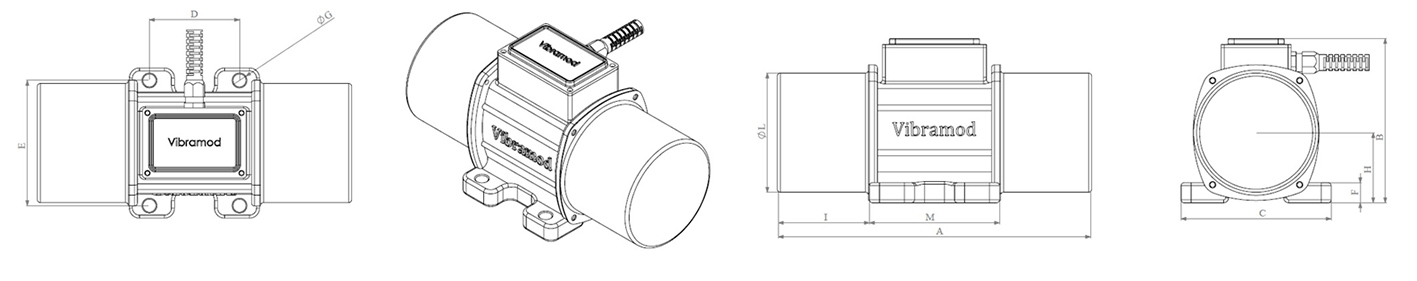

| MODEL | A | B | C | D | E | F | G | H | I | L | M | RAKOR CABLE ENTRY |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VMD 550 | 392 | 225 | 215 | 120 | 170 | 35 | 17 | 116 | 110 | 240 | 172 | M20x1,5 |
| VMD 650 | 392 | 225 | 215 | 120 | 170 | 35 | 17 | 116 | 110 | 240 | 172 | M20x1,5 |
| VMD 800 | 440 | 240 | 240 | 140 | 190 | 42 | 17 | 117 | 110 | 240 | 220 | M20x1,5 |
| VMD 1000 | 440 | 240 | 240 | 140 | 190 | 42 | 17 | 117 | 110 | 240 | 220 | M20x1,5 |
